CIC 200™ SHEET METAL
HOLE CUTTER KIT
Fractional
|
P/N 8901
|

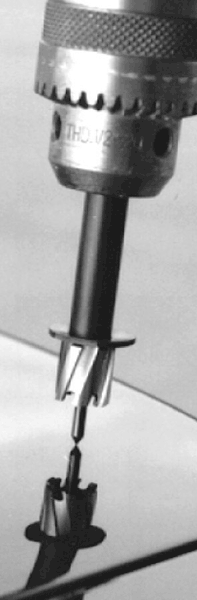

Cutters & Arbor for 3/8'' or larger hand-held drills & drill presses |
Seven convenient sizes: 5/16'', 3/8'', 7/16'', 1/2'', 9/16'', 5/8'', 3/4'' plus
Arbor, 2 Pilots, Stop & Spacer Washers, Adjusting Wrench, Center Punch
|
• Cut clean, accurate, burr-free holes... fast
• Cut through sheet metal, plate, and plastic up to 1/4'' thick
• Precision ground M2 High Speed Steel
• 3x faster than hole saws or twist drills
• Lasts 10x longer than hole saws
|
 |
Important Instructions:
1. When mounting cutter to arbor, always use spacer washer (or stop washer for 1/2'' or larger).
2. Always use a center punch.
3. Always wear eye protection during use.
4. Allow cutter to establish a groove prior to
applying maximum feed force.
5. Do not aim cutter so that ejected slug could
hit you or someone in the vicinity of operation.
6. Tool life can be optimized by using the
recommended speed for the tool and type
of material being cut. |
7. When removing the cutter, do not clamp the arbor - use drill chuck or wrench to hold arbor.
8. Firm pilot spring tension will help prevent cutter skipping across material. Adjust pilot spring tension by turning the set screw in the rear of the arbor.
Left to lessen tension, right to increase.
9. Use cutting fluid or stick lubricant for best cutting tool performance in sheet metal or plate stock.
10. Replace pilot when the point becomes dull.
11. Occasionally lubricate internal parts. |
Material |
Recommended Speed (RPM) |
| Cutter Diameter / Part Number |
5/16"
51800 |
3/8"
51801 |
7/16"
51802 |
1/2"
51803 |
9/16"
51804 |
5/8"
51805 |
3/4"
51806 |
| Tool Steel or SS |
600 |
500 |
450 |
400 |
350 |
300 |
250 |
| Mild Steel |
1200 |
1000 |
900 |
800 |
700 |
600 |
500 |
| Soft Aluminum |
9600 |
8000 |
7200 |
6400 |
5600 |
4800 |
4000 |
|
|
|
