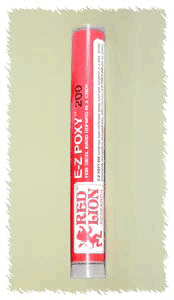

E-Z Poxy 200
(For steel hard repairs in a stick)
|
Part #74502 – 4.0 oz.
MSDS |
A combination of steel reinforced epoxy resin and hardener in a stick. Simply knead putty and apply to
damaged area. It can be drilled, filed, tapped, sanded or machined after one hour.
|
Features:
• No measuring, mess or waste
• Fast – sets in 10 minutes
• Adheres to damp surfaces and hardens under water
• Certified to NSF/ANSI Standard 61 for use in contact
with potable water and drinking water systems
• Authorized by the USDA for use in federally
inspected meat and poultry plants
|
PHYSICAL PROPERTIES:
Density.................18.5 lb./gal. (2.2 gm/cm3)
Compression Strength................12,000 psi
Tensile Strength..............................6,000 psi
Modulus of Elasticity..................6 x 105 psi
Adhesive Strength.............................900 psi
Izod Impact................0.3 ft.-lb./in. (notched)
Hardness (Shore D)................................... 80
Maximum Use Temp............300oF (149oC)
ELECTRICAL PROPERTIES:
Volume Resistance....... 1 x 1012 ohm-cm
Dielectric Strength............... 300 volts/mil @ 0.15 cm
IMPORTANT: Do not use on polyethylene,
polypropylene and polybutylene. |
|
Applications:
• Perfect for repairing tanks, radiators, bathroom fixtures,
tile, cars, boats, metal and wood furniture, downspouts,
gutters, garbage cans, valves, cast iron,etc. |
|
Back
*******************************************************************************************************************
|
|

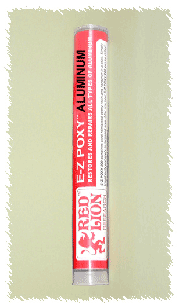

E-Z Poxy Aluminum
(Strong, fast setting, fast curing, multi-purpose epoxy putty stick) |
Part #74505 – 4.0 oz.
MSDS |
A hand-kneadable, non-rusting, aluminum reinforced
epoxy putty that mixes in just one minute to provide fast
repairs to all types of aluminum. It comes in a handy
four-ounce "tootsie roll" form with the curing agent
encapsulated in the contrasting color base material. The
putty-like consistency eliminates drips and runs, providing"no mess" applications with no tools required for use.
Simply cut off amount needed, knead and apply.
|
Features:
• No measuring, mess or waste
• Fast – cures in 60 minutes
• Non-rusting – can even be applied underwater |
PHYSICAL PROPERTIES:
Working Life (min.)..................................... 20
Shelf Stability....... 6 months (min. @ 75oF)
Shore D Hardness (full cure, 24 hrs.)... 75
Lap Shear Tensile Strength on Steel
(1" x 1" x 1/16")................................700 Lbs.
Temperature................... 250oF continuous
Limitations......................300oF intermittent
Chemical Resistance:
Resistant to hydrocarbons,
ketones, alcohols, esters, halocarbons, aqueous salt
solutions and dilute acids and bases.
Electrical Resistance.... 30,000 megohms
Dielectric Strength................. 300 volts/mil
Shrinkage................................. Less than 1%
Non-Volatile Content............................
100%
Compression Strength................12,000 psi |
|
Applications:
• Perfect for patching dings, scratches, cuts, gouges
and holes in fiberglass, metal and wood.
• Repairs fittings, pipes, electrical connections,
leaking gaskets, fuel tanks, etc. |
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Aqua Repair
(Repairs wet areas and underwater surfaces) |
Part #74500 – 4.0 oz.
MSDS
|
A hand-kneadable, specialty epoxy putty that mixes in just one minute for repairs to damp, wet
areas and underwater surfaces. It contains a fading dye and becomes "fiberglass white" after
mixing. It may be applied underwater, in either fresh or salt water and will bond tenaciously to
substances such as fiberglass, metal, wood, concrete, ceramic, glass, etc.
|
Features:
• No measuring, mess or waste
• Excellent as an adhesive
• Can be applied underwater
• Does not yellow when exposed to UV light
• Authorized by the USDA for use in federally
inspected meat and poultry plants |
PHYSICAL PROPERTIES:
Working Life (min.).................................... 20
Shelf Stability...... 6 months (min. @ 75oF)
Shore D Hardness (full cure, 24 hrs.).. 75
Lap Shear Tensile Strength on Steel
(1" x 1" x 1/16")...............................700 Lbs.
Temperature.................. 250oF continuous
Limitations.....................300oF intermittent
Chemical Resistance:
Resistant to hydrocarbons,
ketones, alcohols, esters, halocarbons, aqueous salt
solutions and dilute acids and bases.
Electrical Resistance... 30,000 megohms
Dielectric Strength................ 300 volts/mil
Shrinkage............................... Less than 1%
Non-Volatile Content........................... 100%
Compression Strength..............12,000 psi |
|
Applications:
• Perfect for patching dings, scratches, cuts, gouges
and holes in fiberglass, metal and wood.
• Repairs fittings, pipes, electrical connections,
leaking gaskets, fuel tanks, etc. |
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Concrete
(Repairs and rebuilds anything made of concrete) |
Part #74526 – 4.0 oz.
MSDS |
A hand mixable, fast curing epoxy putty stick that mixes in one minute to provide permanent repairs
to concrete. Simply knead putty and apply to damaged area. Can be drilled, filed, tapped, sanded,
machined, sawed or painted after one hour.
|
Features:
• Use as putty or adhesive
• No measuring, mess or waste
• Fast – sets in 10 minutes
• Adheres to damp surfaces
• Hardens under water
• Authorized by the USDA for use in federally |
PHYSICAL PROPERTIES:
Work Life.................................... 4-7 minutes
Shelf Stability @ 75oF .. 24 months (minimum)
Hardness (Shore D) (full cure 1hour) 5-85 (ASTM D2240)
Lap Shear Tensile Strength ........... (ASTM D1002)
- On Steel (1” x 1” x 1/16”)...... 500-800 lbs
- On Concrete .....................Concrete failure
Compressive Strength ........ 12,000 lbs/in2 (ASTM D695)
Density ........ 2.005 gm/cm3 (16.72 lb/gal.)
Prox. 5/16” Bolt Pullout .................. >2 tons (Dennison Block Test)
Shrinkage ......................<1% (ASTM D2566)
Non-Volatile Content ............................100%
Upper Temperature Limit
- Continuous ............................250oF
- Intermittent ............................300oF
Chemical Resistant to hydrocarbons, ketones, alcohols, esters,
halocarbons, aqueous salt solutions and dilute acids and bases. |
|
Applications:
• Perfect for cracked and spalled concrete, setting
anchors, and filling cracks, gaps, holes, etc. |
|
Back
*******************************************************************************************************************
|
|

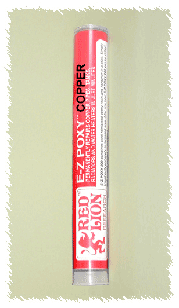

E-Z Poxy Copper
(Hardens like metal to form a copper repair) |
Part #74501 – 4.0 oz.
|
A hand-kneadable, copper reinforced epoxy putty that hardens to an extremely tough and durable
substance with exceptional adhesion. It can be drilled, tapped, filed, machined, etc. High pressure
hot water pipes, tanks and radiators can be restored to service after just 60 minutes!
|
Features:
• No measuring, mess or waste
• Fast – cures in less than 60 minutes
• Contains real copper
• Certified to NSF/ANSI Standard 61 for use in
contact with potable water
• Authorized by the USDA for use in federally
inspected meat and poultry plants |
PHYSICAL PROPERTIES:
Density...................15.8 lb./gal. (1.9 gm/cm3)
Compression Strength.................18,000 psi
Tensile Strength...............................6,000 psi
Modulus of Elasticity...................6 x 105 psi
Adhesive Strength..............................700 psi
Izod Impact.................0.3 ft.-lb./in. (notched)
Hardness (Shore D)................................... 85
Maximum Use Temp............300oF (149oC)
ELECTRICAL PROPERTIES:
Volume Resistance........ 5 x 1015 ohm-cm
Dielectric
Strength.............. 400 volts/mil @ 0.125 in. |
|
Applications:
• Perfect for high pressure hot water pipes, sealing leaks
in pipes, elbows, joints, sleeves, sink traps, drains, etc.
• Can also be used as an adhesive. |
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Cups
(Pre-measured, single use, fast setting epoxy) |
Part #74514 – 1.2 oz.
MSDS
|
Unique, pre-measured epoxy cups contain both resin and hardener in one convenient package.
Self-package mixing eliminates measuring, squeeze tubes and weighing scales. No mess,
guesswork or waste. Components are color-coded to assure complete mixing.
|
Features:
• Fast cure mixer cups
• Convenient self-package mixing
• Superior strength epoxy bonds almost anything
• No mess, no waste
• Bonds virtually any material |
TECHNICAL DATA:
Parts fixture in 5-15 minutes,
- full cure in 24 hrs
Creep Strength................................. excellent
Peel Strength............................................ good
Working Life......................5 minutes @ 70oF
Chemical Resistance..................... excellent
Temperature............................................180oF |
|
Applications:
• Bonds wood, ceramic, glass, marble, metal, plastic, concrete, stone, brick and much more. |
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Fast Set
(Strong, permanent epoxy adhesive) |
Part #74530 – 1 fl. oz.
MSDS |
A strong, permanent epoxy adhesive that provides a durable repair resistant to solvents,
moisture and impact.
|
Features:
• Easy-to-use dual piston dispenser
• Clear
• Sets in just 5 minutes
• Waterproof and solvent resistant |
Applications:
• E-Z PoxyTM Fast Set bonds wood, metal, plastic, ceramic, glass, china, tile, fiberglass and
laminates.
NOTE: Adhesives will not bond to polyethylene or polypropylene products.
|
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Plastic
(Restore, rebuild and repair ABS, CPVC and PVC plastic) |
Part #74527 – 4.0 oz.
MSDS |
A patented, hand mixable epoxy putty that forms a durable bond to all major plastic types except
polyolefins polyethylene / polypropylene). When mixed together, the materials combine to form
a polymer compound that can be molded into shapes, wrapped around or used to build up and
repair just about anything made from rigid or semi-flexible plastics. After 2-3 hours, it can be drilled,
sawed, carved, sanded or painted. Contains a fading
blue dye and becomes white after mixing.
|
Features:
• No measuring, mess or waste
• Fast – sets in 10 minutes
• Adheres to damp surfaces
• Hardens under water |
PHYSICAL PROPERTIES:
Work Life (Minimum ...............20-25 Minutes
Shelf Stability ...... 24 months (min. @ 75oF)
Shore D Hardness (full cure 24 hrs.) .60-70
Lap Shear Tensile Strength
(1" x 1" x 1/16") .................... 500-800 on pvc
Compression Strength lbs./in.2 ........ 12,000
Density ................. 1.6, 13/4 (gm/cm3, lb.gal.)
Shrinkage ................................................... <1%
Non-Volatile Content .............................. 100%
Electrical Resistance ...... 30,000 megohms
Dielectric Strength ................... 300 volts/mil
Temperature........ 250oF continuous,
300oF intermittent
Chemical Resistance: Resistant to hydrocarbons,
ketones, alcohols, esters, halocarbons, aqueous salt
solutions and dilute acids and bases. |
|
Applications:
• Perfect for rebuilding rigid and semi-flexible plastics
• Repairing automotive trim, appliance parts, outdoor
furniture and more
• Sealing leaks in plastic plumbing pipe |
|
Back
*******************************************************************************************************************
|
|
E-Z Poxy Wood
(Restore, rebuild and repair all types of wood) |
Part #74503 – 1.94 oz.
MSDS |
Repairs wood with an epoxy compound many times stronger than the wood itself. Simply knead
putty and apply to damaged surface. It can be drilled, nailed, sanded, stained or painted – all within
60 minutes! Also eliminates the need to replace
expensive damaged molding, trim, door jambs & furniture.
|
Features:
• No measuring, mess or waste
• Fast – cures in 45 minutes
• Will not dry out like conventional putties
• Simplifies wood repairs |
PHYSICAL PROPERTIES:
Density .....................6.7 lb./gal. (0.8 gm/cm3)
Compression Strength .................18,000 psi
Tensile Strength ...............................6,000 psi
Modulus of Elasticity ...................6 x 105 psi
Adhesive Strength ..............................700 psi
Izod Impact .................0.3 ft.-lb./in. (notched)
Hardness (Shore D) ............75 after 90 min.
Maximum Use Temp .............250oF (121oC)
ELECTRICAL PROPERTIES:
Volume Resistance ......... 5 x 1015 ohm-cm
Dielectric
Strength................. 400 volts/mil @ 0.125 cm |
|
Applications:
• Perfect for repairing damaged furniture, rebuilding or
fabricating wood parts, repairing stripped screw holes.
• Can also be used as an abrasive. |
|
Back
*******************************************************************************************************************
|
|
Fast-Fix Epoxy Patch Kit
(Pre-measured, single use, fast setting fiberglass epoxy patch) |
|
This special two-part epoxy fiberglass kit permanently repairs cracks and holes in pipe and
hose. Pre-measured fiberglass patch is ideal for repairing cylindrical surfaces (hose, pipe, etc.)
and for flat surfaces such as watertanks. Just blend the components together in the package
and apply to any clean surface. It will cure in approximately 20 minutes – even on wet surfaces! |
Features:
• Unique pre-measured package contains 4" x 12" patch and rubber gloves
• Permanently repairs virtually any surface
• Withstands 600oF and 150 psi pressure
• Safe for drinking water systems*
• Paintable
Tested for potability using EPA approved standard testing methods. |
|
Back
*******************************************************************************************************************
|
|
Fast-Fix Pipe & Hose Repair Kit
(Pre-mixed, air activated, single use, fast setting fiberglass epoxy wrap) |
|
A special resin impregnated fiberglass tape sealed in a foil pouch. Once opened, the tape is
simply wrapped around any hose or pipe, and will set as hard as steel in just 30 minutes – even
under water. It is ideal for stopping leaks and keeping on hand as an emergency repair kit.
|
Features:
• Unique pre-measured package contains 2" x 60" impregnated patch and rubber gloves
• Air activated resin
• Permanently repairs virtually any surface
• Withstands 600oF and 150 psi pressure
• Safe for drinking water systems*
• Paintable
*Tested for potability using EPA approved standard testing methods. |
Applications:
TECHNICAL DATA:
Number of Piles ..............................................9
Fabrication Method ..................... Wet Lay-up
Cure Time at 75oF ....................... 30 Minutes
Barcol Hardness ..........................................53
Dielectric Strength ................... 16,060 Volts
Heat Resistance ............................... 1,100oF
CHEMICAL RESISTANCE:
IImmersion Chemical - Tota;Immersion Time - Effect
Acetone ...........................30 Days ......................... Softened
Diesel Fuel ......................30 Days ......................... No Effect
Ethyl Alcohol ..................30 Days ......................... Soft, Rubbery
Gasoline ..........................30 Days ......................... No Effect
30% HCL .........................30 Days ......................... Softened
Toluene ............................30 Days ......................... Softened
MEK ..................................30 Days ......................... Soft, Rubbery
Chlorine ...........................30 Days ......................... No Effect
MECHANICAL PROPERTIES:
Structure ............................Method ............................. PSI
Flexural Strength ............ ASTM D 709-71.............. 16,100
Tensile Strength ..............ASTM D 638 .................... 24,900
Compression Strength.. ASTM D 695-77............... 26,600
Bond Strength........................................98
4 Layers to Total Obliteration
Spray Penetration Test (4 layers recycled from 50oF-90oF)
Temperature Cycle Test (with no delmination or loss of bond) |
• Oil and Gas Pipelines
• Off-Shore and Petroleum Refineries
• Steam Lines
• Plant Piping Systems
• Tanks
• Container Linings
• Industrial and Commercial Irrigation Systems
• Underwater Cable Encapsulation
• Underwater Piling Encapsulation
• Underground Piping Structures
• Waste Water Treatment Plants
• Institutional Use
• Pneumatic Hoses and Lines
• Piping for Hydronic Heating
• HVAC Systems
• Kitchen and Bath Plumbing
• Underground Sprinkler and Irrigation Systems
• Pool and Spa Piping
• Pool Liners
• RV Water Piping Systems
• Marine Water Piping Systems
• Boat Hulls
• Automobile Radiator Hoses & Exhaust Systems
• Farm Machinery and Equipment
• Marine Exhaust Systems
For more information, see Technical Bulletin #30.001
|
|
Back
*******************************************************************************************************************
|
|

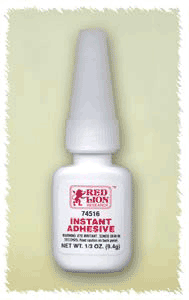

Instant Adhesive
(Instant, high strength, cyanoacrylate adhesive for non-porous surfaces) |
Part #74516 – 1/3 fl. oz.
MSDS |
Ultra-high performance, versatile adhesive bonds metal, rubber, plastic and glass instantly.
Red Lion Instant Adhesive works where others fail, providing the strongest bond on hard t obond
surfaces.
|
Features:
• Permanent, super strength bond
• Easy to use
• Bonds instantly
• Saves time, money, labor and mess |
TECHNICAL DATA:
Color.........................................................Clear
Gap Fill ..................................................... .004"
Viscosity cP ................................................ 40
Tensile Shear Strength PSI ................ 2,500
Temperature
Range ........... -65oF to 180oF (-54oC to 82oC)
Cure Speed
Fixture .....................................20-40 seconds
Full ...................................................... 24 hours |
|
Applications:
• Bonds metal, rubber, plastic and glass |
|
Back
*******************************************************************************************************************
|
|
Instant Adhesive Gel
(Instant, high strength, cyanoacrylate adhesive for porous surfaces) |
Part #74525 – .10 oz.
MSDS |
Ultra-high performance, versatile adhesive bonds metal, rubber, plastic and glass instantly.
Red Lion Instant Adhesive Gel works where others fail, providing the strongest bond on hard to bond surfaces. Particularly suited for bonding porous or absorbent materials such as wood,
paper, leather or fabric. |
Features:
• Permanent, super strength adhesive
• Bonds instantly – no waiting for product to cure
• Easy application – no mixing required
• Saves time, money, labor and mess |
TECHNICAL DATA:
Color ........................................................Clear
Viscosity cP...............................................Gel
Tensile Shear Strength PSI -1,000 to 3,200
Temperature
Range .......... -65oF to 180oF (-54oC to 82oC)
Cure Speed
Fixture/Full.............................20-40 seconds
Full...................................................... 24 hours |
|
Applications:
• Bonds wood, paper, leather, fabric, metal, rubber,
plastic and glass
For more information, see Technical Bulletin #30.023 |
|
Back
*******************************************************************************************************************
|
|
Just for Copper
(Solderless copper bonding) |
Part #74553 – 1.85 oz.
MSDS |
Solderless copper bonding, bonds rigid copper pipes and standard fittings without heat.
Changes from a liquid to a polyacrylic solid to provide maximum strength between tube and
fitting. Works even when pipes are wet. No mixing, just shake, squeeze and apply. Is an
insulator and will not conduct electricity.
|
Features:
• Easy to use, permanent cold weld for installing and repairing rigid copper pipe in
potable hot and cold water
• Provides same permanent weld as hot solder
• Temperature range from -40oF to 245oF
• Holds 200psi 7 seconds after bonding; holds 500psi 4 hours after bonding
• Sets in 5 seconds; cures in 7 minutes
• 50g bottle makes up to 200 welds
• Approved for potable water and EPA National Drinking Water Standards |
Applications:
• For use on pipes up to 2 diameter
• Use on copper pipe and copper and brass fittings |
|
Back
*******************************************************************************************************************
|
|

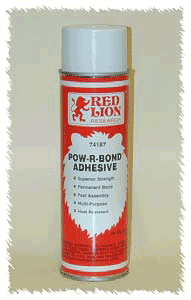

Pow-R-Bond Adhesive
(Spray adhesive) |
Part #74187 – 13.25 oz.
MSDS |
High strength, fast setting, permanent adhesive for all heavy duty general purpose bonding
applications. Lace-like pattern sets up quickly for high contact strength. Dries in minutes. High
temperature resistance to 140oF (60oC).
|
Features:
• Superior strength – handles heavy duty applications
• Permanent bond – assures durability
• Fast assembly – minimizes downtime
• Multi-purpose – provides versatility
• Heat resistant – for high temperature applications |
Applications:
• Ideal for laminates, trim, signs, kick
plates, woodworking, maintenance
and asbestos removal
• Adheres to most surfaces including
wood, metal, glass, plastic, etc. |
For more information, see Technical Bulletin #30.006 |
|
Back
*******************************************************************************************************************
|
|
Liquid Electrical Tape
(Brush applicator cap) |
Part #74547 – 4 fl. oz.
MSDS |
Forms a protective dielectric coating on electrical connections to seal out moisture and prevent
corrosion. Wil not peel or unravel. Flame retardant. Service temperature range is -30oF to +255oF.
Completely waterproofs connections and can be applied to irregular shaped or
hard-to-reach conditions.
|
Features:
• Seals and protects electrical connections
• Adheres to all metal, plastic, vinyl, rubber
and composite surfaces
• Stops terminal screws from loosening from vibration
• Safe and easy to use
• Fast drying
• Dielectric strength 1000-1500 volts/mil |
Applications:
• Bilge pumps, outdoor exposed wiring, sprinkler pumps, timers, underground wiring, outdoor
lighting fixtures, instruments, computers . . . anywhere a weatherproof and dependable
connection is needed.
For more information, see Technical Bulletin #30.017 |
|
|
Back
*******************************************************************************************************************
|
|
CPVC Cement – Orange
(Cement for CPVC pipe and fittings)
|
Part #74552 – 16 oz.
MSDS |
Medium-bodied cement for use on CPVC pipe and fittings up to 6” diameter.
|
Features:
• Exceeds new environmental requirements and meets various California district rules
• Low V.O.C.
• Apply at temperatures 40oF to 90oF
• Exceeds ASTM D-2846, F-493
• NSF and UPC listed |
Applications:
• For C.T.S. (copper tube size) and Schedule 80, potable water pressure pipe |
|
Back
*******************************************************************************************************************
|
|
PVC-ABS-CPVC Cement
(Multi-purpose cement) |
Part #74550 – 16 oz.
MSDS |
Medium-bodied clear cement for ABS, PVC or CPVC up to 6” diameter.
|
Features:
• Apply at temperatures 40oF to 100oF
• Exceeds performance requirements of ASTM D-2564, D-2846, D-2235 and F-493 |
Applications:
• Recommended for pipe Schedule 40 and Schedule 80 potable water, pressure pipe, gas,
conduit and DWV |
|
Back
*******************************************************************************************************************
|
|
PVC and CPVC Primer – Purple
(All-purpose primer/cleaner) |
Part #74549 – 16 oz.
MSDS |
Removes surface dirt, grease and grime as well as softens pipe in preparation for solvent
cement.
|
Features:
• Exceeds new environmental requirements and meets various California district rules
• Less aggressive than clear and standard purple primers
• Purple tint for verification for code
• Low V.O.C.
• Apply at temperatures 40oF to 100oF |
Applications:
• For PVC and CPVC pipe and fittings |
|
Back
*******************************************************************************************************************
|
|
PVC Cement – Clear
(Cement for PVC pipe and fittings) |
Part #74551 – 16 oz.
MSDS |
Medium-bodied clear cement for use on PVC pipe and fittings up to 6” diameter for Schedule
40 and Schedule 80.
|
Features:
• Exceeds new environmental requirements and meets various California district rules
• Low V.O.C.
• Apply at temperatures 40oF to 100oF
• Exceeds ASTM D-2564
• NSF and UPC listed |
Applications:
• Recommended for gas, conduit, drain, waste and vent piper |
|
Back
*******************************************************************************************************************
|
|
RTV Gasket Maker/Sealer (Tube)
(Tough silicone adhesive in a caulking gun cartridge) |
Part #74542 – White
Part #74548 – Black
Part # 74543 – Blue
Part # 74541 – Clear
MSDS |
The ultimate gasket maker and sealer in a caulking gun cartridge.
Ideal for use wherever a strong, permanently elastic weatherproof
adhesive sealant is needed. This product has excellent adhesion characteristics, high chemical
resistance and will not sag or shrink from severe temperature extremes. As an instant gasket
maker, this product replaces a wide range of cork, paper, asbestos, felt and metal gaskets.
Reduces inventory – eliminates need to stock conventional gaskets. Reduces downtime – gets
equipment back in operation fast. (Use with P/N 8253 Caulking Gun). |
Features:
• 100% silicone rubber
• Permanently flexible
• Withstands temperatures -85oF to 450oF (-51oC to 232oC)
• Adheres to most surfaces
• Insulates
• For interior and exterior use |
Applications:
• Use for sealing cracks in machinery, heating and ventilating duct work, plumbing fixtures,
electrical connections, low pressure water and drain pipes.
• Bonds nameplates, machinery flanges, glass, signs and electrical insulation.
• Ideal for caulking windows, doors, walls, ceiling cracks and crevices
For more information, see Technical Bulletin #30.019 |
|
Back
*******************************************************************************************************************
|
|
RTV Gasket Maker/Sealer
(Hi-Temp Red Tube)
(Hardens like metal to form a copper repair) |
Part #74544 – 10.3 oz.
MSDS |
The ultimate gasket maker and sealer in a caulking gun cartridge. Ideal for use wherever
a strong, permanently elastic weatherproof adhesive sealant is needed. This product has
excellent adhesion characteristics, high chemical resistance and will not sag or shrink from
severe temperature extremes. It can be used in a wide temperature range of -85oF to 600oF
(500oF continuous). As an instant gasket maker, this product replaces a wide range of cork,
paper, asbestos, felt and metal gaskets. Reduces inventory – eliminates need to stock
conventional gaskets. Reduces downtime – gets equipment back in operation fast.
(Use with P/N 8253 Caulking Gun).
|
Features:
• 100% silicone rubber
• Permanently flexible
• Withstands temperatures -85oF to 600oF (-51oC to 315oC)
• Adheres to most surfaces
• Insulates
• For interior and exterior use |
Applications:
•Use for sealing cracks in machinery, heating and ventilating duct work, plumbing fixtures,
electrical connections, low pressure water and drain pipes.
• Bonds nameplates, machinery flanges, glass, signs and electrical insulation.
• Ideal for caulking windows, doors, walls, ceiling cracks and crevices
For more information, see Technical Bulletin #30.019 |
|
Back
*******************************************************************************************************************
|
|
RTV Gasket Maker
(Tough silicone adhesive sealer/gasket maker) |
Part #74128 (White) – 8 oz.
Part #74131 (Black) – 8 oz.
Part #74132 ( Blue ) – 8 oz.
Part #74133 (Clear ) – 8 oz.
MSDS |
The ultimate gasket maker and sealer in an easy to use dispenser.
It adheres to and bonds natural and synethic fibers, metal, glass, wood,
rubber, ceramic, painted and plastic surfaces. Seals against water, air, chemicals, oils and grease.
Fills crevices and irregularities in joints. Waterproofs porous materials. Perfect for weather-stripping.
Insulates against shock and vibration and a great electrical insulator. A perfect gasket maker for
just about anything. When fully cured and washed, this product meets the following specifications:
FDA Regulation No. 21 CFR 177.2600, MIL-A-46106, per current revision and type, and TT-S-
001543A. This product is suitable for use in federally inspected meat and poultry plants. |
Features:
•One-part silicone adhesive sealant
• Temperature range -80oF to +500oF (450oF continuous)
• Insulates and weatherproofs |
RTV TUBE EXTENSION TIP
Part #16065
Screws on RTV dispensers for
precision application of sealer. |
Applications:
•For use on gasketing pumps, oil pans, valve covers,
gear boxes,
compressors, etc.
• Seals windows, pipe joints and parts
• Bonds gaskets, appliance parts, sign letters
• Caulks joints, duct work, equipment housings
. |
NOTE: Do not use in direct contact with fuel oil, gasoline, acid or caustic materials. Not for use on head gaskets or carburetor base |
|
Back
*******************************************************************************************************************
|
|

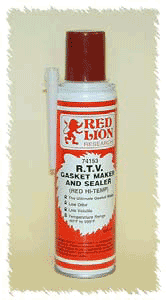

RTV Gasket Maker (Hi-Temp Red)
(High temperature resistant, tough silicone adhesive) |
|
The ultimate gasket maker and sealer features the most advanced technology in an easy
to use dispenser, giving a uniform bead of any size or shape. It meets O.E.M. low volatile
specifications for use with oxygen sensor equipped engines. Meets GM specs.
|
Features:
•For use on gasketing pumps, oil pans, valve
covers, gear boxes, compressors, etc.
• Seals windows, pipe joints and parts
• Bonds gaskets, appliance parts, sign letters
• Caulks joints, duct work, equipment housings |
Applications:
•Ultimate gasket maker
• Low odor
• Low volatile and non-corrosive
• Temperature range -60oF to +600oF
(500oF continuous)
• Insulates and weatherproofs NOTE: Do not use in direct contact with fuel oil, gasoline, acid or caustic materials. Not for use on head gaskets or carburetor base.
|
|
Back
*******************************************************************************************************************
|
|

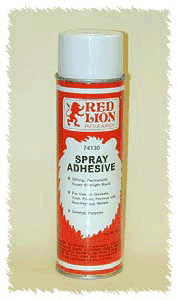

Spray Adhesive
(Multi-purpose, permanent, fast setting) |
Part #74130 – 13.25 oz.
MSDS |
A multi-purpose light-duty spray adhesive that works on virtually any surface where an
adhesive is needed. Remains tacky for several minutes to allow for respositioning.
|
Features:
•Strong permanent bond – assures effective repairs and secure assembly
• 3-position valve – allows proper dispensing of product
• General purpose – covers virtually any light-duty applications
• Temperature Range: 120oF continuous, 200oF intermittent |
Applications:
• Ideal for gaskets, trim, foam, ceramics, ferrous and no-ferrous metals, cardboard, etc.
For more
information,
see Technical
Bulletin #30.005
|
|
Back
*******************************************************************************************************************
|
|

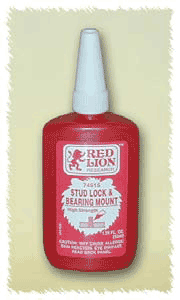

Stud Lock and Bearing Mount
(High temperature resistant adhesive for locking studs and bearings) |
Part #74515 – 1.20 fl. oz.
MSDS |
A very high-strength adhesive for locking and sealing all fasteners up to 1" diameter and
bearings. Ideal where high viscosity, shear strength and rapid cure speed are necessary. It
is also ideal for tamper proofing where a difficult removal is desired. Stud Lock and Bearing
Mount is suitable for temperatures up to 300oF, prevents rusting of threads and is removable
with heat and hand tools.
|
Features:
•Covers all threadlocking applications
• Extremely versatile – can be used with all metals,
glass, ceramics and many thermoset plastics
• "Capillary action" gap fill – prevents movement of
screw threads and
eliminates self-loosening
• Anti-corrosion formulas prevent rusting of thread
• Fast cure without cracking or shrinking – enables quick assembly with minimum downtime
• Easy application – no mixing required
• Authorized by USDA for use in federally inspected meat and poultry plants
• Saves time, money, labor and mess |
TECHNICAL DATA:
Gap Fill..................................................... .007"
Viscosity cP.............................................. 500
Torque in. lbs. (Break/Prevail)...... 160/320
Temperature
Range.... -65oF to 300oF (-54oC to 149oC)
Cure Speed
(Fixture/Full).....................20 min. / 24 hours
|
|
Applications:
• Can be used with all metals, glass, ceramics and many thermoset plastics |
|
Back
*******************************************************************************************************************
|
|
Super Adhesive Sealant UV
(Multi-purpose, ultra-violet light resistant high strength adhesive ) |
Part #74554 – 10.2 fl. oz.
MSDS |
This multi-purpose, clear adhesive is formulated for use in applications that may be exposed
to ultra-violet light. Adheres to wood, metal, rubber, glass and most plastics. It is not for use on
StyrofoamTM. Its flexible bond resists cold temperatures, yellowing, cracking and embrittlement.
Can be submerged in fresh and salt water after complete cure. Great for bonding objects
subject to wear and to vibration. Safe for applications exposed to dilute acids and dilute
caustics. Recommended for all industrial applications where UV resistance is required.
|
Features:
•UV resistant formula
• Industrial strength
• Extremely flexible
• Waterproof
• Paintable
• Self-leveling |
TECHNICAL DATA:
Full Cure Time ............... Thin film 24 hours
................................... Thick film 48-72 hours
Tensile Strength ......................... 3500 lb./in.
Elongation................... 900% (ASTM D-412)
Service Temperature
Range.................................... -40oF to 150oF
Paint-Over Time............................. 24 hours
Dielectric Strength....................... 400 V/mil |
|
Applications:
•Plant and Building Maintenance
• Transportation
• Marine
• Electrical
• Rubber Goods and Plastics
• Tools and Fasteners
• Construction and Carpentry
For more
information,
see Technical
Bulletin #30.013 |
|
Back
*******************************************************************************************************************
|
|
Super Adhesive Sealant
(Multi-purpose, flexible, high strength adhesive) |
Part #74510 – 3.7 fl. oz.
MSDS |
A versatile, high-performance industrial adhesive and sealant which provides exceptional
mechanical and chemical bonding in plant, fleet, commercial and contractor applications.
Adheres to and seals all woods, metals, concrete, masonry, ceramics, rubber, fiberglass, glass
and plastics.
|
Features:
•Superior strength
• Extremely flexible
• Abrasion resistant
• Paintable
• Waterproof
• Self-leveling |
TECHNICAL DATA:
Temperature Range
.....................................................
-40oF to 150oF
Tensile
Strength
................................. 3500 lb/in.2 (ASTM D-412)
Elongation ........................900% (ASTM D-412)
Dielectric Strength ..................... 400 volts/mil
Dry Time ..................................Tack: 5 minutes
..............................................Paintable: 24 hours |
|
Applications:
•Plant and Building Maintenance
• Transportation
• Marine • Electrical
• Rubber Goods and Plastics
• Tools and Fasteners
• Construction and Carpentry |
|
Back
*******************************************************************************************************************
|
|
Threadlocker
(Strong, temporary lock for threaded fasteners) |
Part #74513 – 1.20 fl. oz.
MSDS |
This medium-strength, general purpose thread locking compound is ideal for all nut and bolt
applications and eliminates self-loosening. It is suitable for temperatures up to 300oF, prevents
threads from rusting and is removable with hand tools.
|
Features:
•Covers all threadlocking applications
• "Capillary action" gap fill – prevents movement of
screw threads and eliminates self-loosening
• Anti-corrosion formulas prevent rusting of thread
• Fast cure without cracking or shrinking –
enables quick assembly with minimum downtime
• Easy application – no mixing required
• Authorized by USDA for use in federally inspected meat and poultry plants
• Saves time, money, labor and mess |
TECHNICAL DATA:
Gap Fill .................................................... .005"
Viscosity c ............ 1200/5000 Thixotropic
Torque in. lbs. (Break/Prevail)........... 80/50
Temperature
Range .... -65oF to 300oF (-54oC to 149oC)
Cure Speed
(Fixture/Full) .....................20 min. / 24 hours |
|
Applications:
• Can be used with all metals, glass, ceramics and many thermoset plastics |
|
Back
*******************************************************************************************************************
|
|
Thread Sealant Hydraulic/Pneumatic
Hardens like metal to form a copper repair) |
Part #74524
1.69 fl. oz.
MSDS |
Specially formulated for both hydraulic and pneumatic systems. Designed to seal and lock
hydraulic and pneumatic fittings, servomechanisms and fine-filtration systems. It contains no
fillers and will not foul valves or fluid filtering systems. It is suitable for temperatures up to 300oF
and rated for sealing pressures to 10,000 psi.
|
Features:
•Medium strength for high pressure fluid power systems
• "Capillary action" gap fill – prevents
movement of threads and eliminates self-loosening
• Fast cure without cracking or shrinking –
enables quick assembly with minimum downtime
• Easy application – no mixing required
• Saves time, money, labor and mess |
TECHNICAL DATA:
Viscosity cP ............................................. 14,000
Breakaway
Torque
N.m. (lb./in.).................................. 2 to 3 (8 to 24)
Temperature.............................. -65oF to 300oF
Range....................................... (-54oC to 149oC)
Cure Speed
(Fixture/Full)............................20 min. / 24 hours |
|
Applications:
• Hydraulic and pneumatic fittings, servomechanisms and fine-filtration systems
NOTE: Not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or
other strong oxidizing materials. |
|
Back
*******************************************************************************************************************
|
|
|
|
|
|
